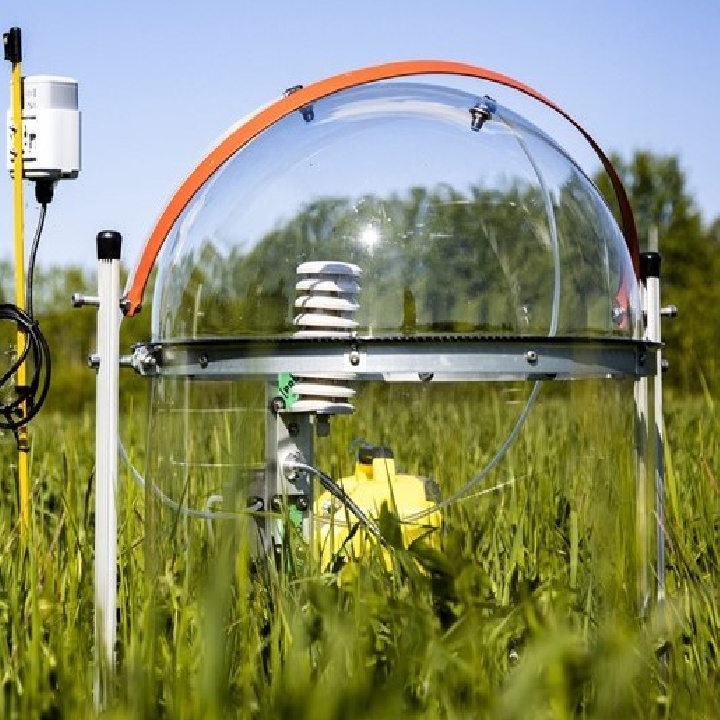

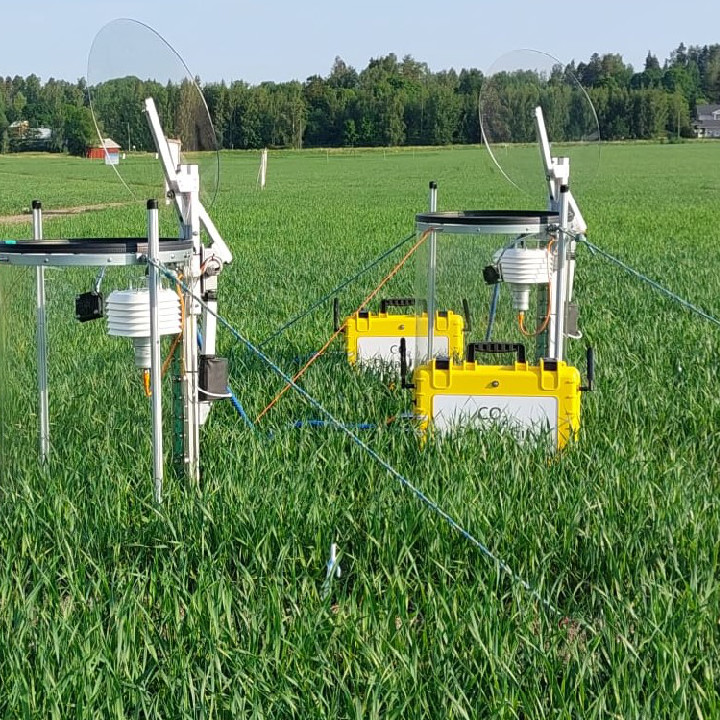

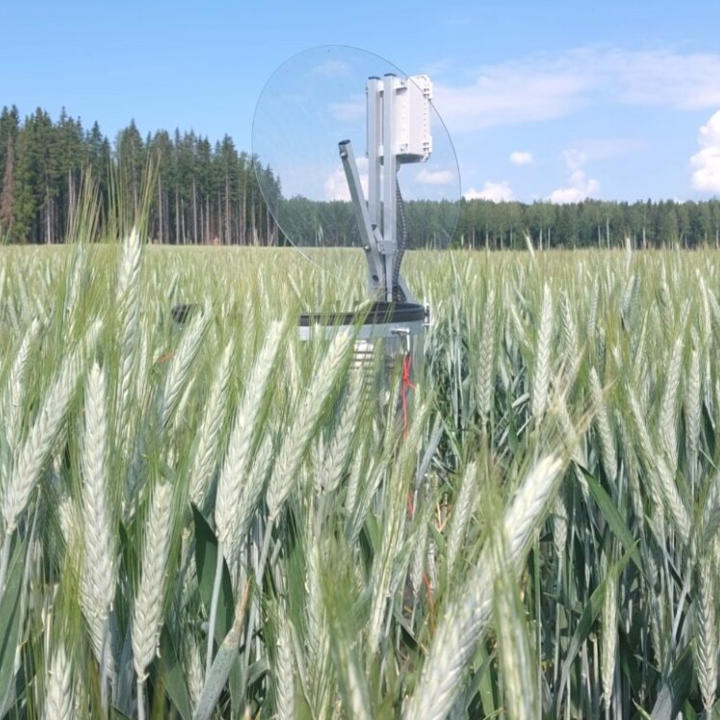

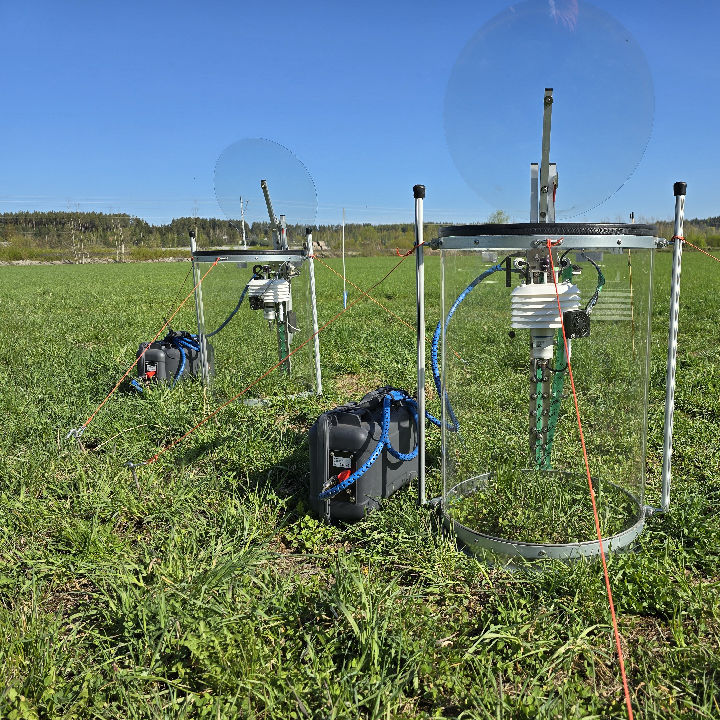

The FluxScout Smart Chamber system represents a new generation of field research instrumentation for monitoring CO₂, CH₄, and N₂O fluxes from soil and vegetation.
Its modular architecture enables one robotic and sensor unit to be used with multiple interchangeable chamber bodies of different diameters and materials — allowing researchers to adapt the system to the specific requirements of each study.
The robotic unit includes an automatic lid actuator, internal fan, environmental sensors, and smart power management. Chamber frames can be quickly exchanged between 300 mm and 500 mm versions, or between transparent, opaque, and diffused-light designs. This flexibility makes the Smart Chamber ideal for a wide range of applications, from soil respiration measurements to light-response and net ecosystem exchange (NEE) studies.
The system integrates directly with leading gas analyzers such as Gasmet, LI-COR, and Picarro, and also supports CO₂ diffusion sensor-based measurements for continuous soil respiration monitoring when analyzer use is not required.
Each cycle — measurement, flushing, and standby — is automatically controlled via the FluxScout Control module and synchronized with the analyzer and cloud services for real-time data access and visualization.
Technical Specifications
| Feature | Specification |
|---|---|
| Chamber material | Stainless steel (HST) or polycarbonate; insulated version available when specified |
| Available diameters | Default 300 mm and 500 mm (interchangeable frames). Other sizes available on request. |
| Chamber height | 250 mm (standard) |
| Footprint area | 0.071 m² (300 mm) / 0.196 m² (500 mm) |
| Internal volume | 1.8 L (300 mm) / 4.9 L (500 mm) |
| Chamber types | Transparent / opaque / light-diffused |
| Lid mechanism | Linear actuator, 12 V DC, IP67, stroke 150–200 mm |
| Internal fan | Brushless, downward-angled airflow for efficient gas mixing |
| Sensor unit | Integrated multi-sensor module including: • Soil temperature (Soil T) • Volumetric water content (VWC) • Chamber internal air temperature (T) • Atmospheric pressure (AP) • Relative humidity (RH) |
| Gas connection | Dual 6 mm pneumatic fittings (IN/OUT) |
| Sampling method | Closed-loop circulation (typical 2 L/min) |
| Optional mode | CO₂ diffusion sensor for continuous soil respiration monitoring |
| Automation cycle | Configurable via FluxScout Control: measurement / flushing / standby |
| Analyzer compatibility | Gasmet, LI-COR, Picarro, and other FTIR / NDIR analyzers |
| Communication | Data transmission via 4G to FluxScout Cloud (secure MQTT protocol) |
| Power supply | 12 V DC, powered by solar + battery system |
| Integration | Fully compatible with FluxScout SenseCloud, SenseMUX, and SenseGas subsystems |
| Operating temperature | –20 °C to +50 °C |
| Dimensions / weight | 300 mm: Ø 300 × 250 mm, ~3 kg / 500 mm: Ø 500 × 250 mm, ~5 kg |
